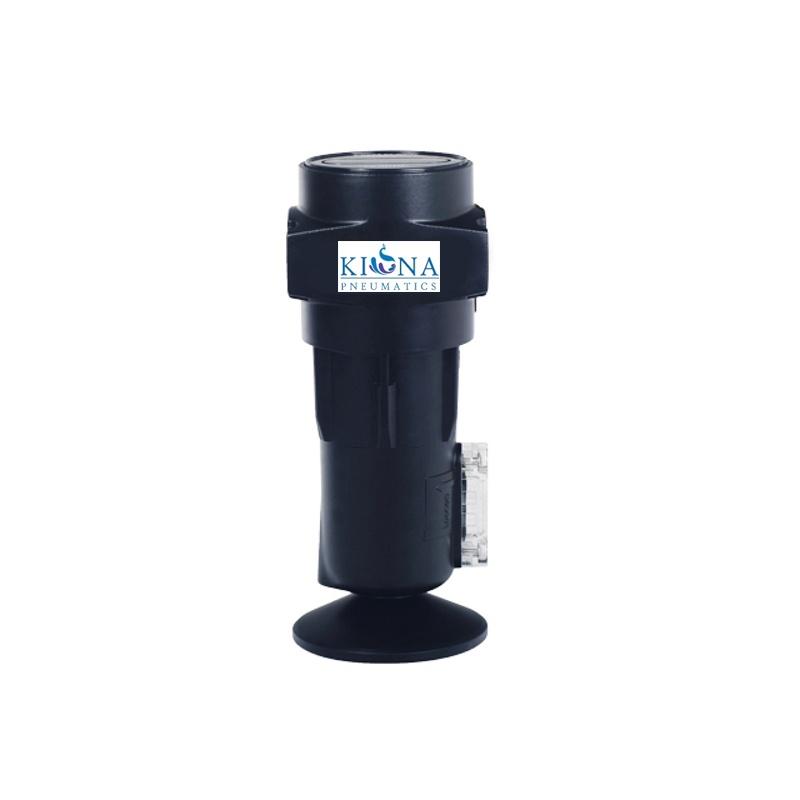

Description
MODEL | PIPE SIZE | FLOW RATES | DIMENSION | ||||||||
---|---|---|---|---|---|---|---|---|---|---|---|
L/S | M3/min | SCFM | W | D | H | ||||||
MS010 | RC1/2" | 40 | 2.4 | 84.5 | 96 | 79 | 233 | ||||
MS020 | RC3/4" | 60 | 3.6 | 127.1 | 96 | 79 | 233 | ||||
MS050 | RC1" | 75 | 4.5 | 158.9 | 96 | 79 | 268 | ||||
MS060 | RC1" | 125 | 7.5 | 264.8 | 138 | 111 | 339 | ||||
MS070 | RC1-1/2" | 166.7 | 10 | 353.1 | 138 | 111 | 339 | ||||
MS100 | RC2" | 300.1 | 18 | 635.6 | 174 | 142 | 669 | ||||
MS110 | RC2-1/2" | 416.8 | 25 | 882.8 | 174 | 142 | 669 | ||||
MS131 | RC2-1/2" | 700 | 42 | 1483.1 | 220 | 184 | 726 | ||||
MS140 | RC3" | 833.5 | 50 | 1765.6 | 220 | 184 | 726 | ||||
MS140F | DN80/DN100 | 833.5 | 50 | 1765.6 | 300 | 184 | 746/761 | ||||
MS150 | RC4" | 1000.2 | 60 | 2118.7 | 220 | 184 | 726 | ||||
MS150F | DN100/DN125 | 1000.2 | 60 | 2118.7 | 300 | 184 | 761/776 | ||||
MS170 | RC4" | 1166.7 | 70 | 2464 | 220 | 184 | 726 | ||||
MS170F | DN100/DN125 | 1166.7 | 70 | 2464 | 300 | 184 | 761/776 |
CONNECTION FACTOR
Pressure | Bar | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Psi | 15 | 29 | 44 | 59 | 73 | 87 | 100 | 116 | 131 | 145 | 160 | 174 | 189 | 203 | 219 | 232 | |
Correction factor | 0.38 | 0.53 | 0.65 | 0.76 | 0.85 | 0.93 | 1 | 1.07 | 1.13 | 1.19 | 1.23 | 1.31 | 1.36 | 1.41 | 1.46 | 1.51 |
Package:
With brown inner box
Net Weight: 1.2KG
Box Size: 260X126X132mm
10PCS/ctn, Carton size: 56X54X36.5cm
